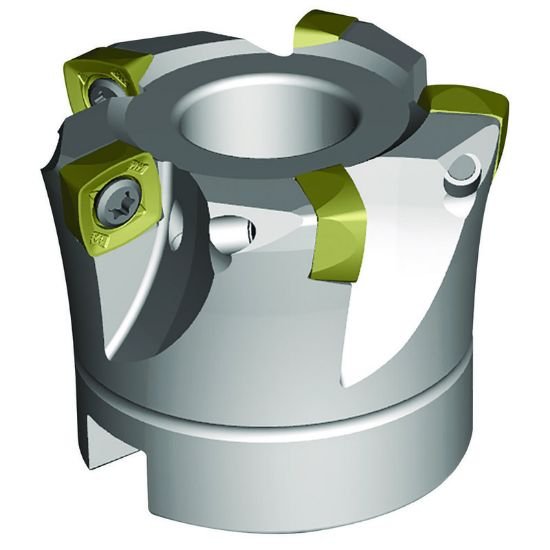

Picture of Widia/Kennametal VXF063Z06S22XD09 Milling Cutter 2.396 Cutter Diameter Face Mill 0.866

Widia/Kennametal VXF063Z06S22XD09 Milling Cutter 2.396 Cutter Diameter Face Mill 0.866

Part Number: WID6597755 ISO: VXF063Z06S22XD09 ANSI:VXF063Z06S22XD09
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019527
Vendor: Sussex Tool and Supply
$634.44

Description

WIDIA 6597755 Square Feed Mill SHELL0.8661 Positive 2.3961 60.86MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 1.5748 40.00MM
Flutes/Inserts 6
Tool Dia 2.3961 60.86MM
Insert Size Ic 904
Performance & Capacity
Cut Dia Min 1.9382 49.23MM
Depth Of Cut Max 0.0591
Max RPM 26000
Max Ramp Angle 0.50°
Materials & Finish
Tool Material Steel
