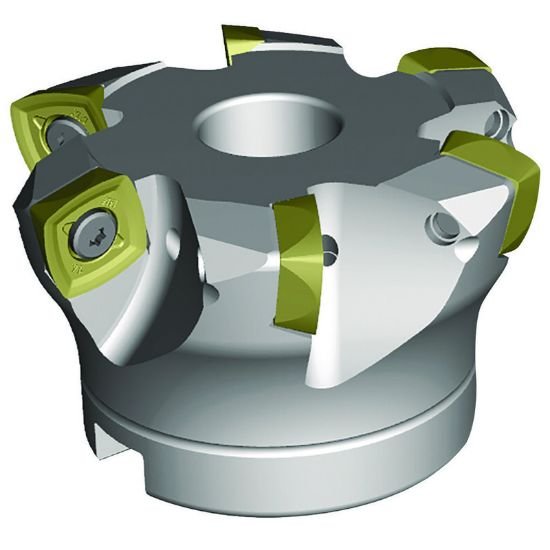

Picture of Widia/Kennametal VXF063Z05S22XE16 Milling Cutter 2.338 Cutter Diameter Face Mill 0.866

Widia/Kennametal VXF063Z05S22XE16 Milling Cutter 2.338 Cutter Diameter Face Mill 0.866

Part Number: WID6597777 ISO: VXF063Z05S22XE16 ANSI:VXF063Z05S22XE16
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019539
Vendor: Sussex Tool and Supply
$624.40

Description

WIDIA 6597777 Square Feed Mill SHELL0.8661 Positive 2.3386 59.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XE
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 1.5749 40.00MM
Flutes/Inserts 5
Tool Dia 2.3386 59.40MM
Insert Size Ic 1605
Performance & Capacity
Cut Dia Min 1.5828 40.20MM
Depth Of Cut Max 0.1378
Max RPM 21400
Max Ramp Angle 0.86°
Materials & Finish
Tool Material Steel
