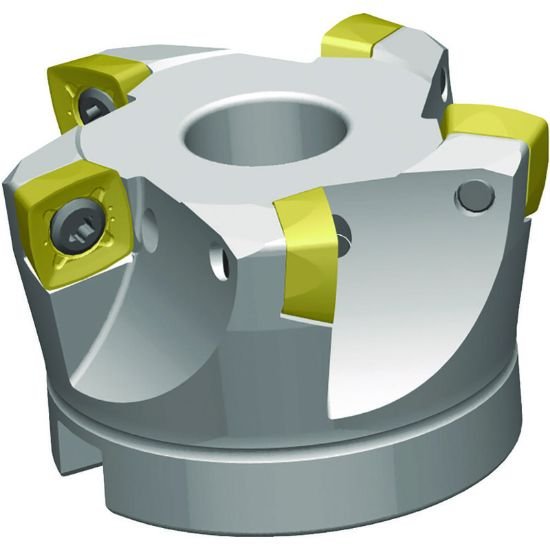

Picture of Widia/Kennametal VXF052Z05S22XD12 Milling Cutter 1.944 Cutter Diameter Face Mill 0.866

Widia/Kennametal VXF052Z05S22XD12 Milling Cutter 1.944 Cutter Diameter Face Mill 0.866

Part Number: WID6596729 ISO: VXF052Z05S22XD12 ANSI:VXF052Z05S22XD12
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019482
Vendor: Sussex Tool and Supply
$585.25

Description

WIDIA 6596729 Square Feed Mill SHELL0.8661 Positive 1.9449 49.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 1.5748 40.00MM
Flutes/Inserts 5
Tool Dia 1.9449 49.40MM
Insert Size Ic 1205
Performance & Capacity
Cut Dia Min 1.3314 33.82MM
Depth Of Cut Max 0.0984
Max RPM 22000
Max Ramp Angle 0.80°
Materials & Finish
Tool Material Steel
