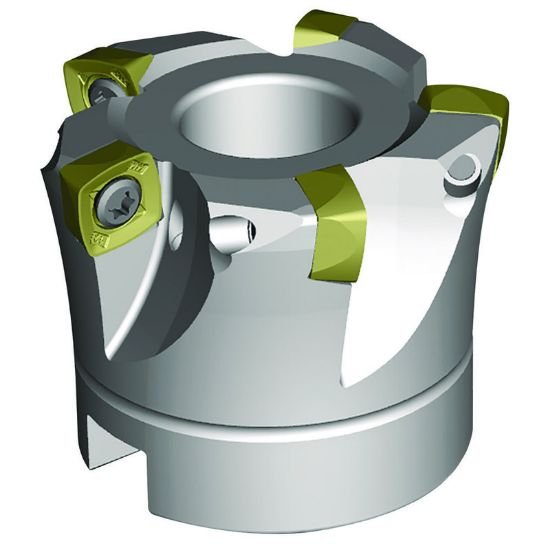

Picture of Widia/Kennametal VXF050Z07S22XD09 Milling Cutter 1.884 Cutter Diameter Face Mill 0.866

Widia/Kennametal VXF050Z07S22XD09 Milling Cutter 1.884 Cutter Diameter Face Mill 0.866

Part Number: WID6597750 ISO: VXF050Z07S22XD09 ANSI:VXF050Z07S22XD09
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019525
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

WIDIA 6597750 Square Feed Mill SHELL0.8661 Positive 1.8843 47.86MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 1.5748 40.00MM
Flutes/Inserts 7
Tool Dia 1.8843 47.86MM
Insert Size Ic 904
Performance & Capacity
Cut Dia Min 1.4266 36.24MM
Depth Of Cut Max 0.0591
Max RPM 30000
Max Ramp Angle 0.70°
Materials & Finish
Tool Material Steel
