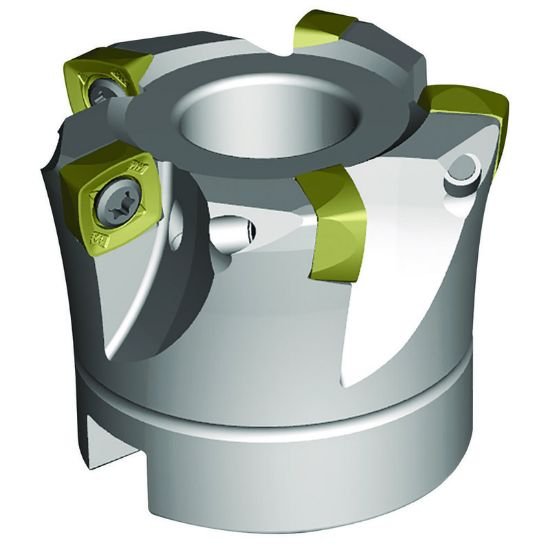

Picture of Widia/Kennametal VXF050Z05S22XD09 Milling Cutter 1.884 Cutter Diameter Face Mill 0.866

Widia/Kennametal VXF050Z05S22XD09 Milling Cutter 1.884 Cutter Diameter Face Mill 0.866

Part Number: WID6597749 ISO: VXF050Z05S22XD09 ANSI:VXF050Z05S22XD09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019524
Vendor: Sussex Tool and Supply
$525.12
WIDIA 6597749 Square Feed Mill SHELL0.8661 Positive 1.8843 47.86MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 0.8661 22.00MM
Overall Length 1.5748 40.00MM
Coolant Thru Thru Coolant
Flutes/Inserts 5
Tool Dia 1.8843 47.86MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 904
Cut Dia Min 1.4266 36.24MM
Hand Right Hand
Depth Of Cut Max 0.0591
Max RPM 30000
Max Ramp Angle 0.70°
