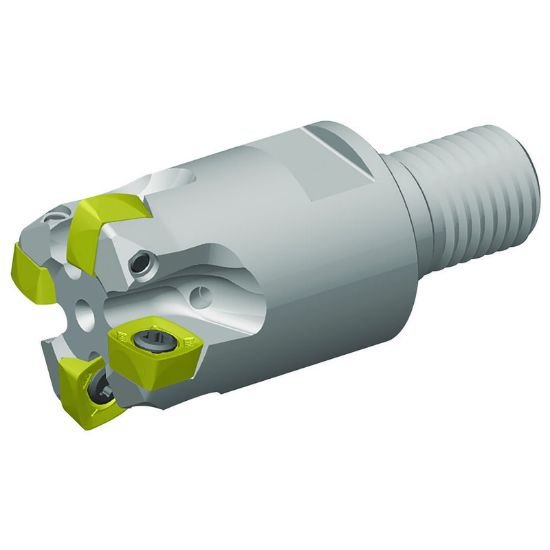

Picture of Widia/Kennametal VXF042Z05M16XD09 Milling Cutter 1.569 Cutter Diameter Screw On M16

Widia/Kennametal VXF042Z05M16XD09 Milling Cutter 1.569 Cutter Diameter Screw On M16

Part Number: WID6597735 ISO: VXF042Z05M16XD09 ANSI:VXF042Z05M16XD09
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019514
Vendor: Sussex Tool and Supply
$470.47

Description

WIDIA 6597735 Square Feed Mill Thread On SCREWM16 Positive 1.5693 39.86MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 2.6575 67.50MM
Flutes/Inserts 5
Tool Dia 1.5693 39.86MM
Insert Size Ic 904
Performance & Capacity
Cut Dia Min 1.1132 28.28MM
Depth Of Cut Max 0.0591
Max RPM 34000
Max Ramp Angle 1.00°
Materials & Finish
Tool Material Steel
