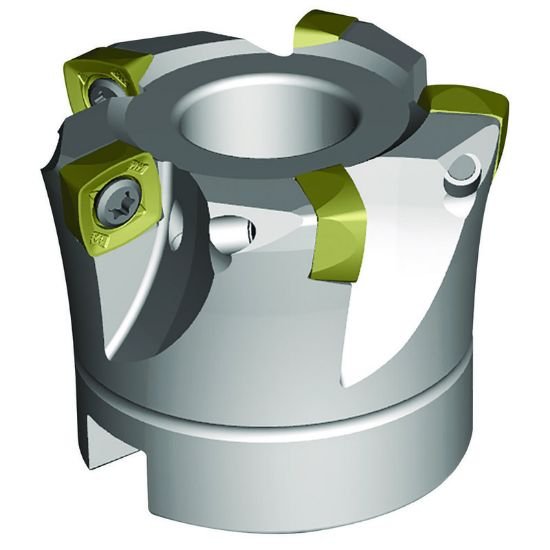

Picture of Widia/Kennametal VXF040Z04S16XD09 Milling Cutter 1.490 Cutter Diameter Face Mill 0.629

Widia/Kennametal VXF040Z04S16XD09 Milling Cutter 1.490 Cutter Diameter Face Mill 0.629

Part Number: WID6597746 ISO: VXF040Z04S16XD09 ANSI:VXF040Z04S16XD09
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019521
Vendor: Sussex Tool and Supply
$483.72

Description

WIDIA 6597746 Square Feed Mill SHELL0.6300 Positive 1.4906 37.86MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 1.2600 32.00MM
Flutes/Inserts 4
Tool Dia 1.4906 37.86MM
Insert Size Ic 904
Performance & Capacity
Cut Dia Min 1.0346 26.28MM
Depth Of Cut Max 0.0591
Max RPM 34500
Max Ramp Angle 0.80°
Materials & Finish
Tool Material Steel
