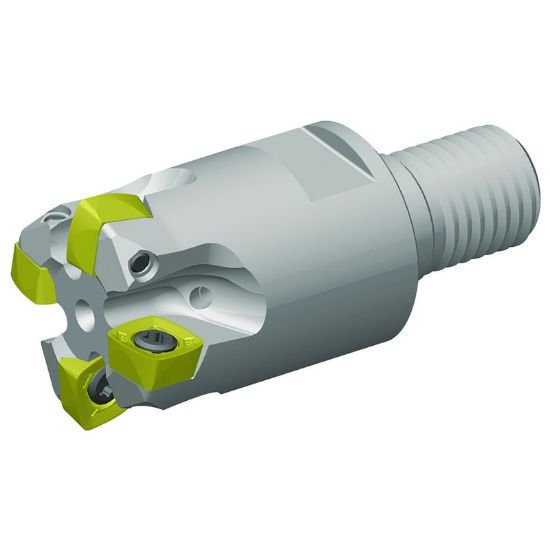

Picture of Widia/Kennametal VXF035Z04M16XD09 Milling Cutter 1.309 Cutter Diameter Screw On M16

Widia/Kennametal VXF035Z04M16XD09 Milling Cutter 1.309 Cutter Diameter Screw On M16

Part Number: WID6597734 ISO: VXF035Z04M16XD09 ANSI:VXF035Z04M16XD09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019513
Vendor: Sussex Tool and Supply
$376.87
WIDIA 6597734 Square Feed Mill Thread On SCREWM16 Positive 1.3095 33.26MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M16
Overall Length 2.6575 67.50MM
Coolant Thru Thru Coolant
Flutes/Inserts 4
Tool Dia 1.3095 33.26MM
Type Of Tool Thread On
Insert/Tool TOOL
Insert Application General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 904
Cut Dia Min 0.8381 21.29MM
Depth Of Cut Max 0.0591
Max RPM 37500
Max Ramp Angle 1.33°
