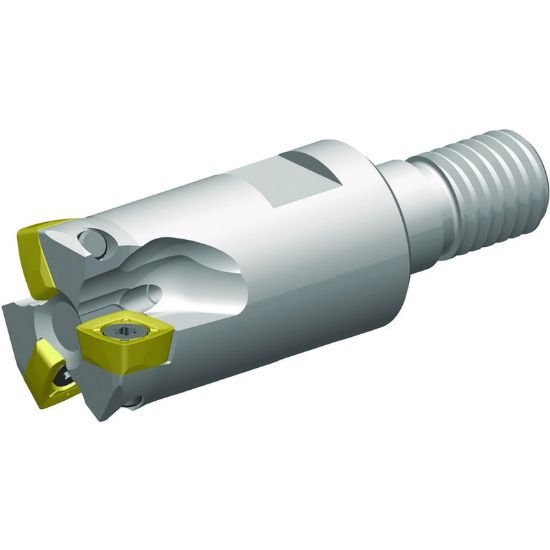

Picture of Widia/Kennametal VXF032Z05M16XP07 Milling Cutter 1.196 Cutter Diameter Screw On M16

Widia/Kennametal VXF032Z05M16XP07 Milling Cutter 1.196 Cutter Diameter Screw On M16

Part Number: WID6597153 ISO: VXF032Z05M16XP07 ANSI:VXF032Z05M16XP07
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019503
Vendor: Sussex Tool and Supply
$439.95

Description

WIDIA 6597153 Square Feed Mill Thread On SCREWM16 Positive 1.1969 30.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Dimensions & Sizing
Overall Length 2.6576 67.50MM
Flutes/Inserts 5
Tool Dia 1.1969 30.40MM
Insert Size Ic 703
Neck Dia 0.6693
Performance & Capacity
Cut Dia Min 0.8889 22.58MM
Depth Of Cut Max 0.0354
Max RPM 41500
Max Ramp Angle 1.40°
Materials & Finish
Tool Material Steel
