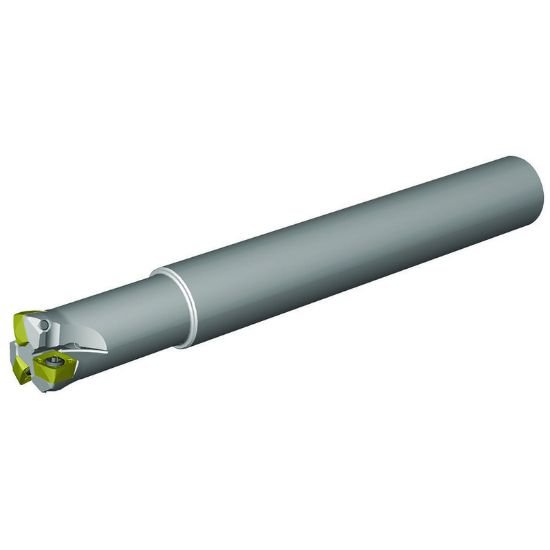

Picture of Widia/Kennametal VXF032Z04A25XD09L200 Milling Cutter 1.191 Cutter Diameter Cylindrical 1.259

Widia/Kennametal VXF032Z04A25XD09L200 Milling Cutter 1.191 Cutter Diameter Cylindrical 1.259

Part Number: WID6597744 ISO: VXF032Z04A25XD09L200 ANSI:VXF032Z04A25XD09L200
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019520
Vendor: Sussex Tool and Supply
$518.91

Description

WIDIA 6597744 Square Feed Mill End Mill Cylindrical 1.2598 Positive 1.1914 30.26MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 7.8740 200.00MM
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 4
Tool Dia 1.1914 30.26MM
Insert Size Ic 904
Neck Dia 1.1181
Performance & Capacity
Cut Dia Min 0.7204 18.30MM
Depth Of Cut Max 0.0591
Max RPM 40500
Max Ramp Angle 1.50°
Materials & Finish
Tool Material Steel
