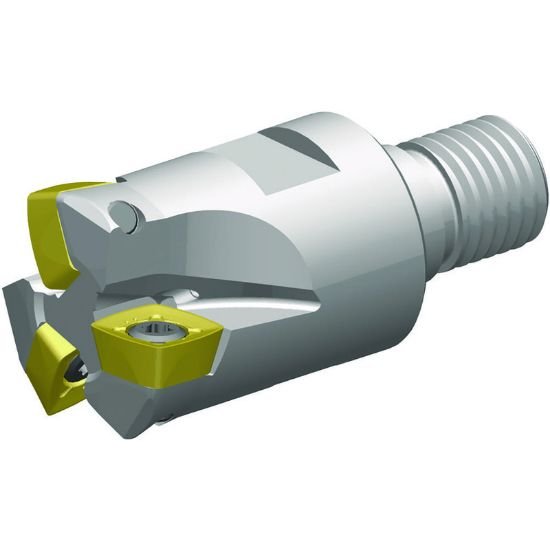

Picture of Widia/Kennametal VXF032Z03M16XD12 Milling Cutter 1.200 Cutter Diameter Screw On M16

Widia/Kennametal VXF032Z03M16XD12 Milling Cutter 1.200 Cutter Diameter Screw On M16

Part Number: WID6596723 ISO: VXF032Z03M16XD12 ANSI:VXF032Z03M16XD12
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019478
Vendor: Sussex Tool and Supply
$400.12

Description

WIDIA 6596723 Square Feed Mill Thread On SCREWM16 Positive 1.2008 30.50MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Dimensions & Sizing
Overall Length 2.6575 67.50MM
Flutes/Inserts 3
Tool Dia 1.2008 30.50MM
Insert Size Ic 1205
Performance & Capacity
Cut Dia Min 0.5463 13.88MM
Depth Of Cut Max 0.0985
Max RPM 31500
Max Ramp Angle 1.80°
Materials & Finish
Tool Material Steel
