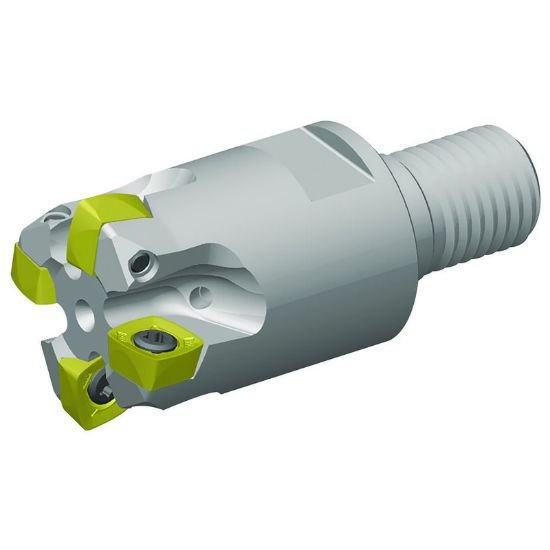

Picture of Widia/Kennametal VXF025Z03M12XD09 Milling Cutter 0.939 Cutter Diameter Screw On M12

Widia/Kennametal VXF025Z03M12XD09 Milling Cutter 0.939 Cutter Diameter Screw On M12

Part Number: WID6597731 ISO: VXF025Z03M12XD09 ANSI:VXF025Z03M12XD09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019510
Vendor: Sussex Tool and Supply
$334.59
WIDIA 6597731 Square Feed Mill Thread On SCREWM12 Positive 0.9394 23.86MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M12
Overall Length 2.2441 57.00MM
Coolant Thru Thru Coolant
Flutes/Inserts 3
Tool Dia 0.9394 23.86MM
Type Of Tool Thread On
Insert/Tool TOOL
Insert Application General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 904
Cut Dia Min 0.4462 11.33MM
Hand Right Hand
Depth Of Cut Max 0.0591
Max RPM 48500
Max Ramp Angle 2.80°
