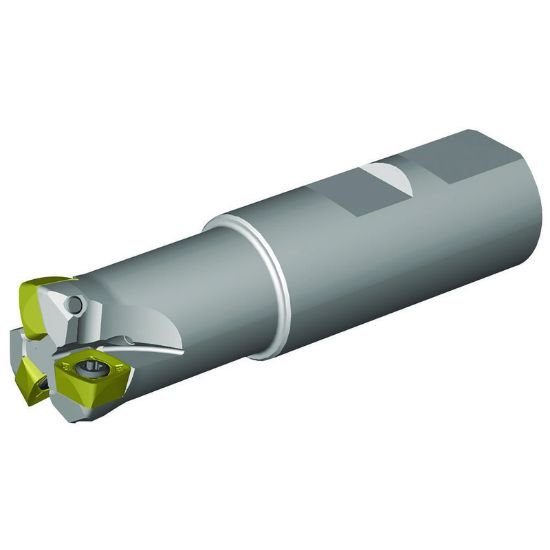

Picture of Widia/Kennametal VXF025Z03B25XD09 Milling Cutter 0.939 Cutter Diameter Cylindrical 0.984

Widia/Kennametal VXF025Z03B25XD09 Milling Cutter 0.939 Cutter Diameter Cylindrical 0.984

Part Number: WID6597736 ISO: VXF025Z03B25XD09 ANSI:VXF025Z03B25XD09
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019515
Vendor: Sussex Tool and Supply
$438.60

Description

WIDIA 6597736 Square Feed Mill End Mill Cylindrical 0.9843 Positive 0.9394 23.86MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 3.7795 96.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 3
Tool Dia 0.9394 23.86MM
Insert Size Ic 904
Neck Dia 0.8425
Performance & Capacity
Cut Dia Min 0.4462 11.33MM
Depth Of Cut Max 0.0591
Max RPM 48500
Max Ramp Angle 2.80°
Materials & Finish
Tool Material Steel
