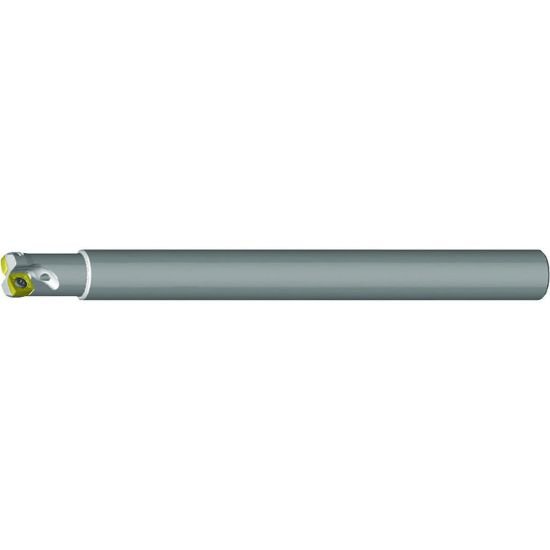

Picture of Widia/Kennametal VXF018Z02A18XP07L180 Milling Cutter 0.637 Cutter Diameter Screw On M10

Widia/Kennametal VXF018Z02A18XP07L180 Milling Cutter 0.637 Cutter Diameter Screw On M10

Part Number: WID6597155 ISO: VXF018Z02A18XP07L180 ANSI:VXF018Z02A18XP07L180
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$336.43
SKU: 1019505

Description

WIDIA 6597155 Square Feed Mill Thread On SCREWM10 Positive 0.6378 16.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 7.0866 180.00MM
Flutes/Inserts 2
Tool Dia 0.6378 16.20MM
Insert Size Ic 703
Neck Dia 0.6102
Performance & Capacity
Cut Dia Min 0.3524 8.95MM
Depth Of Cut Max 0.0354
Max RPM 61000
Max Ramp Angle 5.40°
Materials & Finish
Tool Material Steel
