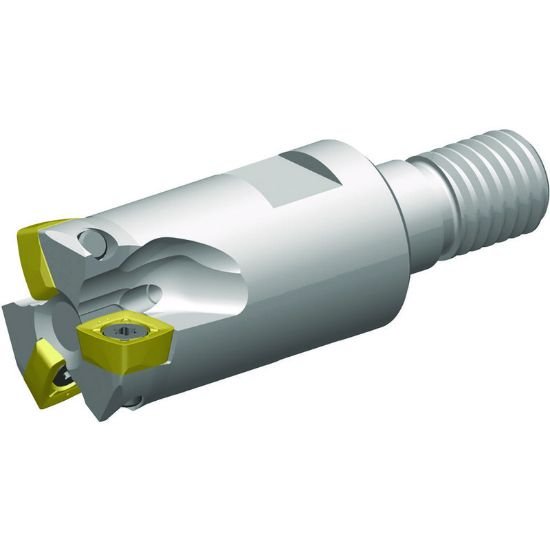

Picture of Widia/Kennametal VXF016Z02M08XP07 Milling Cutter 0.570 Cutter Diameter Screw On M08

Widia/Kennametal VXF016Z02M08XP07 Milling Cutter 0.570 Cutter Diameter Screw On M08

Part Number: WID6597130 ISO: VXF016Z02M08XP07 ANSI:VXF016Z02M08XP07
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$272.04
SKU: 1019500

Description

WIDIA 6597130 Square Feed Mill Thread On SCREWM08 Positive 0.5709 14.50MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 1.6811 42.70MM
Flutes/Inserts 2
Tool Dia 0.5709 14.50MM
Insert Size Ic 703
Neck Dia 0.3346
Performance & Capacity
Cut Dia Min 0.2762 7.02MM
Depth Of Cut Max 0.0354
Max RPM 65000
Max Ramp Angle 5.90°
Materials & Finish
Tool Material Steel
