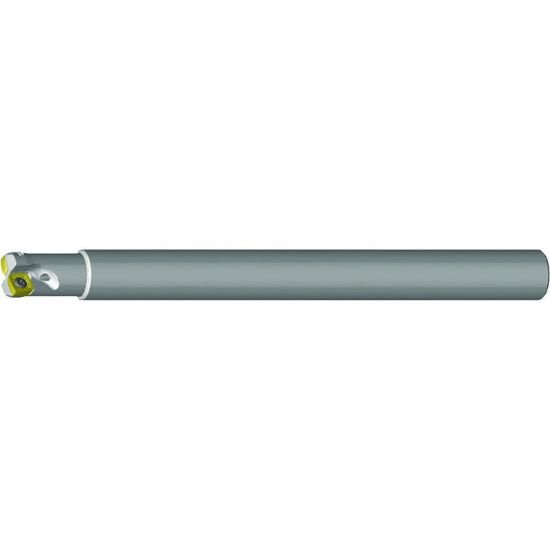

Picture of Widia/Kennametal VXF016Z02A16XP07L180 Milling Cutter 0.561 Cutter Diameter Cylindrical 0.629

Widia/Kennametal VXF016Z02A16XP07L180 Milling Cutter 0.561 Cutter Diameter Cylindrical 0.629

Part Number: WID6597154 ISO: VXF016Z02A16XP07L180 ANSI:VXF016Z02A16XP07L180
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$336.43
SKU: 1019504

Description

WIDIA 6597154 Square Feed Mill End Mill Cylindrical 0.6299 Positive 0.5612 14.25MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 7.0866 180.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.5612 14.25MM
Insert Size Ic 703
Neck Dia 0.5315
Performance & Capacity
Cut Dia Min 0.2762 7.02MM
Depth Of Cut Max 0.0354
Max RPM 65000
Max Ramp Angle 5.90°
Materials & Finish
Tool Material Steel
