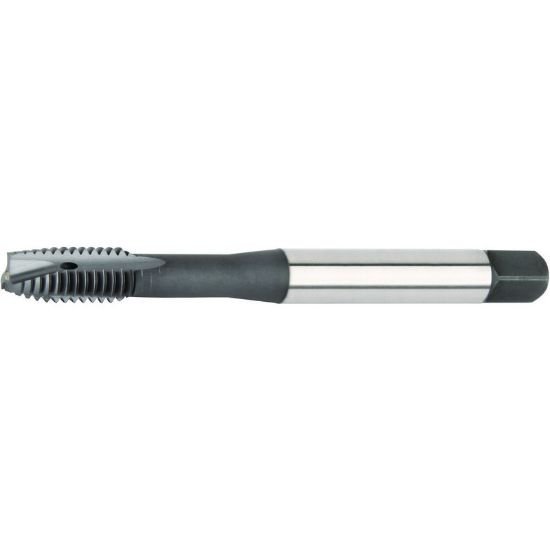

Picture of Widia/Kennametal VTSPO9707 5/16-18.00TPI Cut Spiral Point Plug 3.0P-5.5P HSSE TiCN

Widia/Kennametal VTSPO9707 5/16-18.00TPI Cut Spiral Point Plug 3.0P-5.5P HSSE TiCN

Part Number: WIDVTSPO9707

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1170606
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5368494 5/16"x18.00TPI Cut Spiral Point Plug 3.0P-5.5P HSSE TiCN 2B NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating TICN
Overall Length 3.5430 89.99MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 18.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 5/16"
Thread Limit 2B
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DINSI
Tap Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Tap Square 0.2360
Tap Chamfer 3.0P-5.5P
