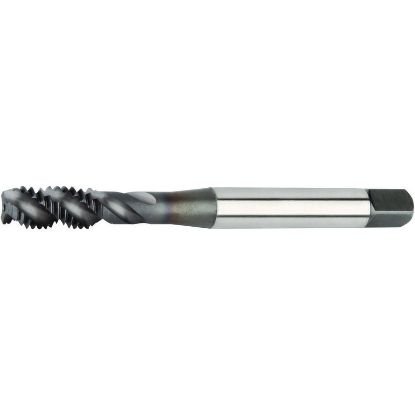

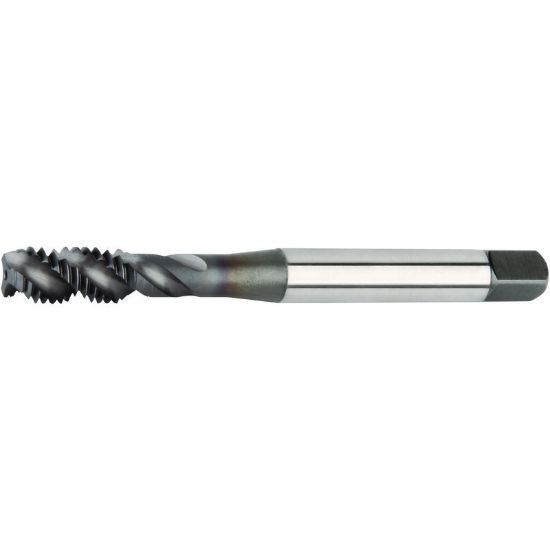

Picture of Widia/Kennametal VTSFT9778 7/8-14.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiCN

Widia/Kennametal VTSFT9778 7/8-14.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiCN

Part Number: WIDVTSFT9778
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$319.19
SKU: 1171012

Description

WIDIA 5436473 7/8"x14.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiCN 2B NF/UNF/UNEF Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P-3.0P
Dimensions & Sizing
Overall Length 5.5120 140.00MM
Shank/Pilot Dia 0.6970 17.70MM
Flutes/Inserts 4
Thread Pitch 14.00TPI
Thread Size 7/8"
Tap Drill Range 0.8008 20.34MM - 0.8193 20.81MM
Tap Square 0.5200
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TICN
Standards & Identification
Dimension Standard DINSI
