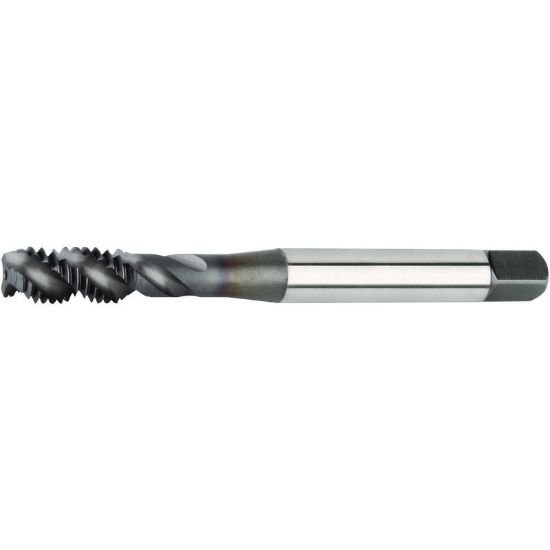

Picture of Widia/Kennametal VTSFT9768 7/16-14.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiCN

Widia/Kennametal VTSFT9768 7/16-14.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiCN

Part Number: WIDVTSFT9768
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$91.40
SKU: 1171006

Description

WIDIA 5436463 7/16"x14.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiCN 2B NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P-3.0P
Dimensions & Sizing
Overall Length 3.9450 100.20MM
Shank/Pilot Dia 0.3230 8.20MM - P
Flutes/Inserts 3
Thread Pitch 14.00TPI
Thread Size 7/16"
Tap Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Tap Square 0.2400
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TICN
Standards & Identification
Dimension Standard DINSI
