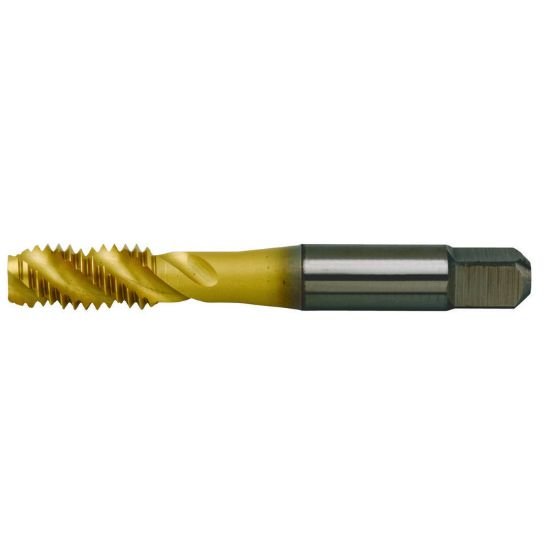

Picture of Widia/Kennametal VTSFT7512 M12-1.75mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Uncoated

Widia/Kennametal VTSFT7512 M12-1.75mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Uncoated

Part Number: WIDVTSFT7512

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1170896
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Dimension Standard JIS
Shank Or Pilot Diameter 0.3346 8.50MM
Thread Limit 6H
Cutter Type Taping
Tap Square 0.2560
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 3.2300 82.04MM
Machine Side (Toolpost) TAP0.256x0.335
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 3
Shipping State OHIO
Cutting Edge Material HSSE
Tool Material Steel
Coolant Thru Non Coolant
Tap Type Mod Bottom
Flute Direction Right
Thread Type Metric
Made In USA No
Thread Size M12
Thread Pitch 1.75MM
Tap Chamfer 2.5P-3.0P
