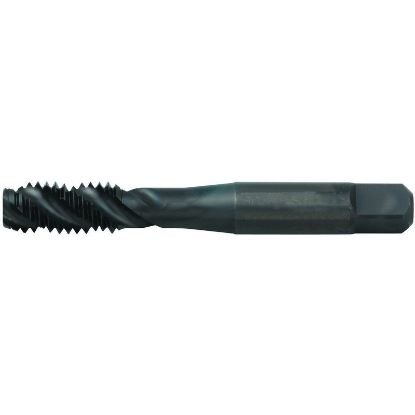

Picture of Widia/Kennametal VTSFT5558 M10-1.50mm Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC

Widia/Kennametal VTSFT5558 M10-1.50mm Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC

Part Number: WIDVTSFT5558

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1170910
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Dimension Standard ANSI/ANSI
Shank Or Pilot Diameter 0.3810 9.68MM
Thread Limit D6
Cutter Type Taping
Tap Square 0.2840
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 2.9370 74.60MM
Machine Side (Toolpost) TAP0.286x0.381
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 3
Shipping State OHIO
Cutting Edge Material HSSE
Tool Material Steel
Coating DLC
Coolant Thru Non Coolant
Tap Type Bottoming
Flute Direction Right
Thread Type Metric
Made In USA No
Thread Size M10
Thread Pitch 1.50MM
Tap Chamfer 1.0P-2.0P
