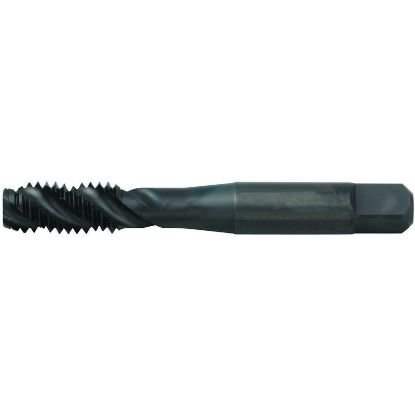

Picture of Widia/Kennametal VTSFT5540 M20-1.50mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE TiCN

Widia/Kennametal VTSFT5540 M20-1.50mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE TiCN

Part Number: WIDVTSFT5540
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M20 × 1.50MM Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1170235
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

WIDIA 5365650 M20x1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE TiCN D6 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 4.4690 113.51MM
Shank/Pilot Dia 0.6520 16.56MM
Flutes/Inserts 4
Thread Pitch 1.50MM
Thread Size M20
Tap Drill Range 0.7299 18.54MM - 0.7413 18.83MM
Tap Square 0.4860
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D6
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TICN
Standards & Identification
Dimension Standard ANSI/ANSI
