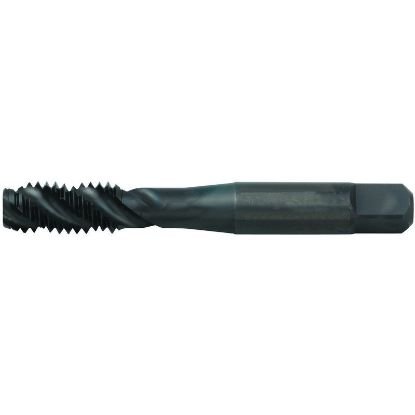

Picture of Widia/Kennametal VTSFT5122 1-1/2-5.00TPI Over Sized Bottom Bottoming 1.0P-2.0P HSSE DLC

Widia/Kennametal VTSFT5122 1-1/2-5.00TPI Over Sized Bottom Bottoming 1.0P-2.0P HSSE DLC

Part Number: WIDVTSFT5122

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1170202
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5364755 1-1/2"x5.00TPI Over Sized Bottom Bottoming 1.0P-2.0P HSSE DLC GH7 +0.0035 NC/UNC Steel DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating DLC
Overall Length 7.0000 177.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.4285 36.28MM
Flutes/Inserts 5
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 5.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1-1/2"
Thread Limit GH7 +0.0035
Tap Style Over Sized Bottom
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 1.5457 39.26MM
Tap Square 1.0690
Tap Chamfer 1.0P-2.0P
