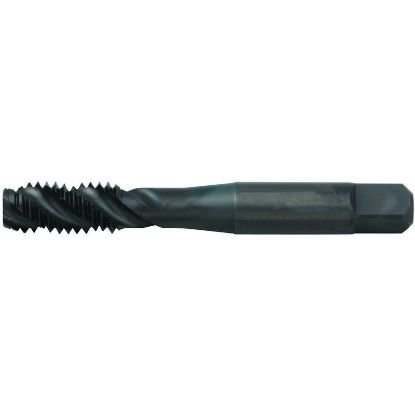

Picture of Widia/Kennametal VTSFT5114 1-1/4-12.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC

Widia/Kennametal VTSFT5114 1-1/4-12.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC

Part Number: WIDVTSFT5114
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$318.13
SKU: 1170196

Description

WIDIA 5364747 1-1/4"x12.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC H5/GH5 NF/UNF/UNEF Steel DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Dimensions & Sizing
Overall Length 5.7500 146.05MM
Shank/Pilot Dia 1.0210 25.93MM
Flutes/Inserts 4
Thread Pitch 12.00TPI
Thread Size 1-1/4"
Tap Drill Range 1.1634 29.55MM - 1.1850 30.10MM
Tap Square 0.7630
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H5/GH5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating DLC
Standards & Identification
Dimension Standard ANSI/ANSI
