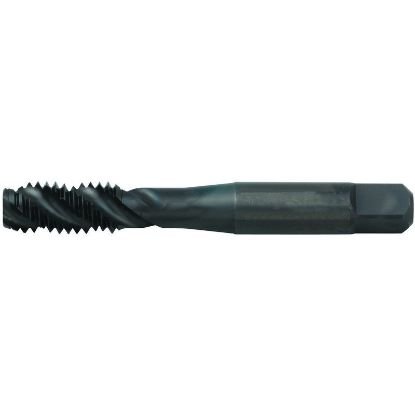

Picture of Widia/Kennametal VTSFT5112 1-1/8-12.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC

Widia/Kennametal VTSFT5112 1-1/8-12.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC

Part Number: WIDVTSFT5112

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1170192
Vendor: Sussex Tool and Supply
$375.48
Products specifications
Attribute name Attribute value
Shipping State OHIO
Cutter Type Taping
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSSE
Tool Material Steel
Machine Side (Toolpost) TAP0.672x0.896
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 5.4370 138.10MM
Shank Or Pilot Diameter 0.8960 22.76MM
Coolant Thru Non Coolant
Coating DLC
Flutes Or Inserts 4
Type of Tool Tap
Length Type Standard
Performance Rating High Performance
Thread Pitch 12.00TPI
Thread Type NF/UNF/UNEF
Flute Direction Right
Thread Size 1-1/8"
Tap Style Cut Spiral Flute
Tap Type Bottoming
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Tap Drill Range 1.0445 26.53MM - 1.0598 26.92MM
Tap Square 0.6690
Tap Chamfer 1.0P-2.0P
