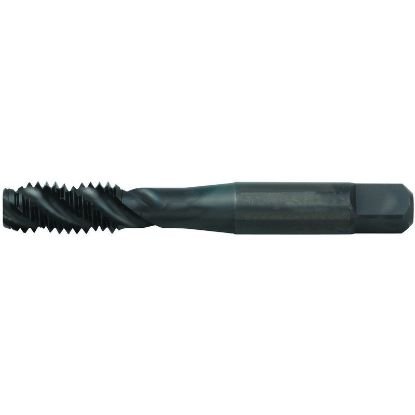

Picture of Widia/Kennametal VTSFT5110 1-1/8-7.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC

Widia/Kennametal VTSFT5110 1-1/8-7.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC

Part Number: WIDVTSFT5110
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$328.68
SKU: 1170191

Description

WIDIA 5364742 1-1/8"x7.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC H6/GH6 NC/UNC Steel DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Dimensions & Sizing
Overall Length 5.4370 138.10MM
Shank/Pilot Dia 0.8960 22.76MM
Flutes/Inserts 4
Thread Pitch 7.00TPI
Thread Size 1-1/8"
Tap Drill Range 0.9764 24.80MM - 1.0134 25.74MM
Tap Square 0.6690
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H6/GH6
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating DLC
Standards & Identification
Dimension Standard ANSI/ANSI
