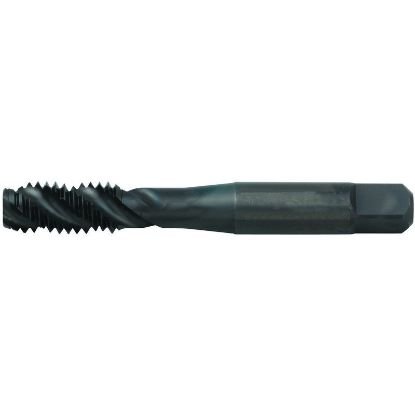

Picture of Widia/Kennametal VTSFT5024 No.8-32.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE Uncoated

Widia/Kennametal VTSFT5024 No.8-32.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE Uncoated

Part Number: WIDVTSFT5024

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1170014
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5357380 No.8x32.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE Uncoated D11 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Overall Length 2.1300 54.10MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 32.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.8
Thread Limit D11
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Square 0.1290
Tap Chamfer 1.0P-2.0P
