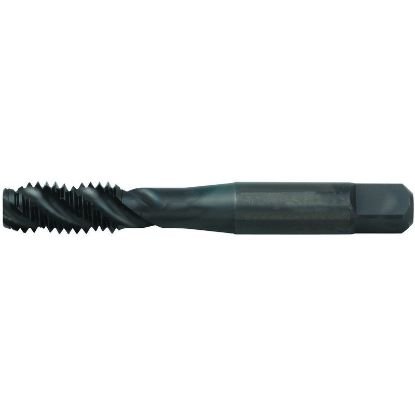

Picture of Widia/Kennametal VTSFT5017 No.6-40.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC

Widia/Kennametal VTSFT5017 No.6-40.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC

Part Number: WIDVTSFT5017

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1169939
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5356775 No.6x40.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC H3/GH3 NF/UNF/UNEF Steel DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating DLC
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 40.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size No.6
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1118 2.84MM - 0.1181 3.00MM
Tap Square 0.1080
Tap Chamfer 1.0P-2.0P
