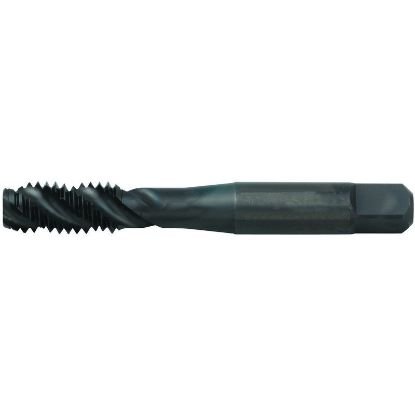

Picture of Widia/Kennametal VTSFT5014 No.6-32.00TPI Over Sized Bottom Bottoming 1.0P-2.0P HSSE TiCN

Widia/Kennametal VTSFT5014 No.6-32.00TPI Over Sized Bottom Bottoming 1.0P-2.0P HSSE TiCN

Part Number: WIDVTSFT5014

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1169938
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5356767 No.6x32.00TPI Over Sized Bottom Bottoming 1.0P-2.0P HSSE TiCN GH7 +0.0035 NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating TICN
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 32.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.6
Thread Limit GH7 +0.0035
Tap Style Over Sized Bottom
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Tap Square 0.1080
Tap Chamfer 1.0P-2.0P
