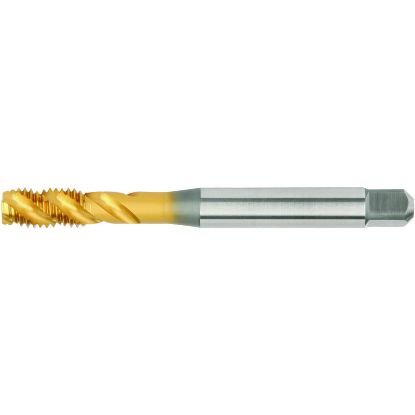

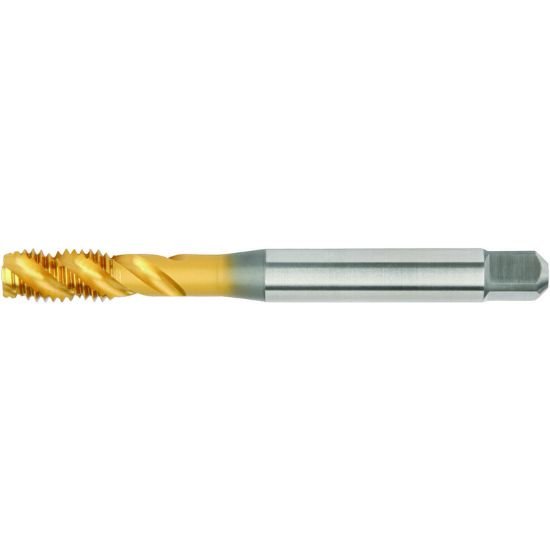

Picture of Widia/Kennametal VTSFT-TC6046 1-1/2-6.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiN

Widia/Kennametal VTSFT-TC6046 1-1/2-6.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiN

Part Number: WIDVTSFT-TC6046

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1172388
Vendor: Sussex Tool and Supply
$704.05
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 1.3268 33.70MM - 1.3701 34.80MM
Dimension Standard DIN/DIN
Shank Or Pilot Diameter 1.1024 28.00MM
Thread Limit 2B
Cutter Type Taping
Tap Square 0.8660
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 7.8740 200.00MM
Machine Side (Toolpost) TAP0.866x1.102
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 4
Shipping State OHIO
Cutting Edge Material HSSE
Tool Material Steel
Coating TIN
Coolant Thru Non Coolant
Tap Type Mod Bottom
Flute Direction Right
Thread Type NC/UNC
Made In USA No
Thread Size 1-1/2"
Thread Pitch 6.00TPI
Tap Chamfer 2.5P-3.0P
