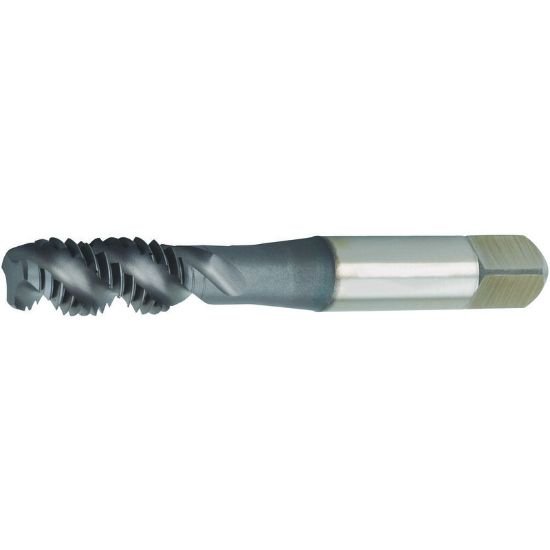

Picture of Widia/Kennametal VTSFT-TC5547 M27-3.00mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE DLC

Widia/Kennametal VTSFT-TC5547 M27-3.00mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE DLC

Part Number: WIDVTSFT-TC5547

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1172155
Vendor: Sussex Tool and Supply
$504.60
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.9402 23.88MM - 0.9709 24.66MM
Dimension Standard ANSI/ANSI
Shank Or Pilot Diameter 0.8960 22.76MM
Thread Limit D8
Cutter Type Taping
Tap Square 0.6690
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 5.1250 130.18MM
Machine Side (Toolpost) TAP0.672x0.896
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 4
Shipping State OHIO
Cutting Edge Material HSSE
Tool Material Steel
Coating DLC
Coolant Thru Non Coolant
Tap Type Mod Bottom
Flute Direction Right
Thread Type Metric
Made In USA No
Thread Size M27
Thread Pitch 3.00MM
Tap Chamfer 2.5P-3.0P
