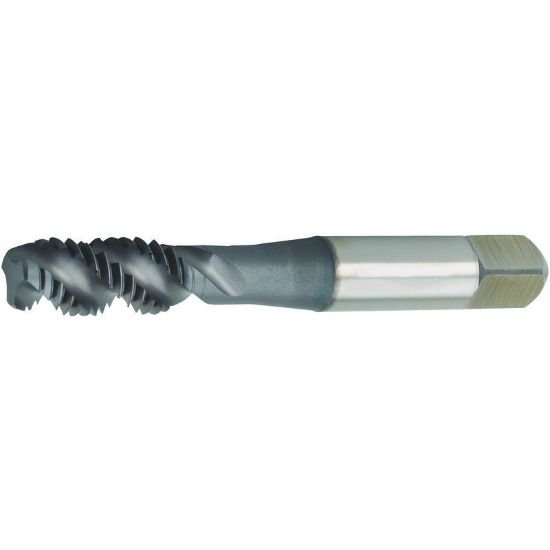

Picture of Widia/Kennametal VTSFT-TC5545 M24-3.00mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE DLC

Widia/Kennametal VTSFT-TC5545 M24-3.00mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE DLC

Part Number: WIDVTSFT-TC5545
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$331.13
SKU: 1172153

Description

WIDIA 6140534 M24x3.00MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE DLC D8 Metric Steel DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P-3.0P
Dimensions & Sizing
Overall Length 4.9210 124.99MM
Shank/Pilot Dia 0.7600 19.30MM
Flutes/Inserts 4
Thread Pitch 3.00MM
Thread Size M24
Tap Drill Range 0.8220 20.88MM - 0.8528 21.66MM
Tap Square 0.5670
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D8
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating DLC
Standards & Identification
Dimension Standard ANSI/ANSI
