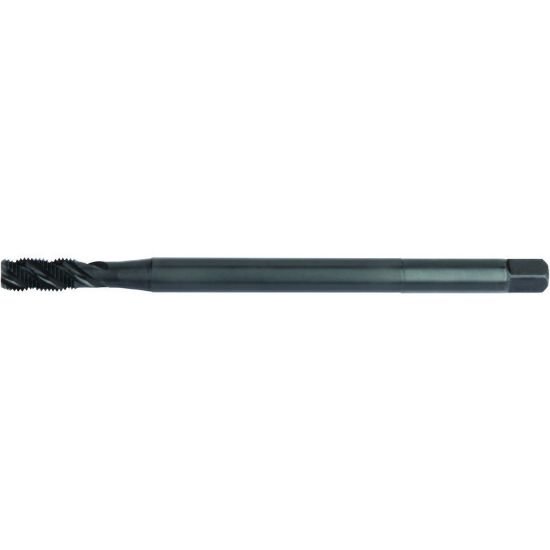

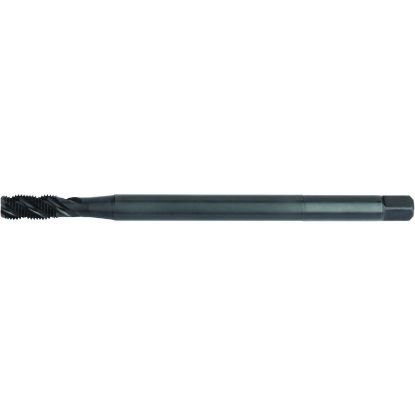

Picture of Widia/Kennametal VTSFT-TC5412 3/8-16.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE DLC

Widia/Kennametal VTSFT-TC5412 3/8-16.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE DLC

Part Number: WIDVTSFT-TC5412

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171283
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5602118 3/8"x16.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE DLC H3/GH3 NC/UNC Steel DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Titanium
Coating DLC
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 16.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 3/8"
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tap Square 0.2840
Tap Chamfer 2.5P-3.0P
