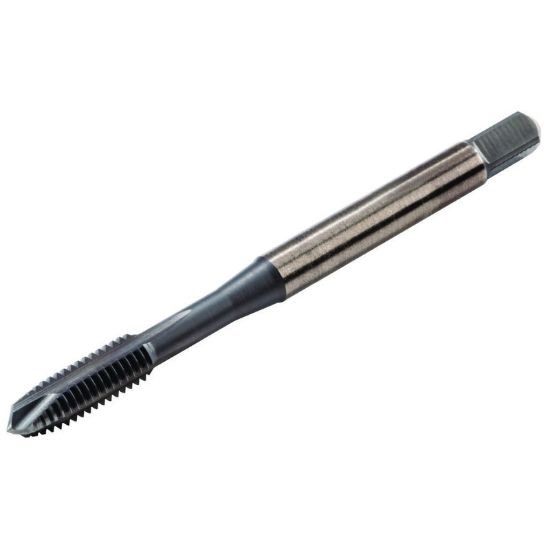

Picture of Widia/Kennametal VTAFT5104 No.10-24.00TPI Over Sized Plug Plug 3.5P-5.0P HSSE CrC + C

Widia/Kennametal VTAFT5104 No.10-24.00TPI Over Sized Plug Plug 3.5P-5.0P HSSE CrC + C

Part Number: WIDVTAFT5104

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1172446
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 6496037 No.10x24.00TPI Over Sized Plug Plug 3.5P-5.0P HSSE CrC + C GH7 +0.0035 NC/UNC Steel A new development in cutting tools has been made for machining aluminum. Hybrid PVD coatings consisting of a super hard TiSiN base layer and a low friction CrCx/a-C:H top layer are used on cutting tools where the combination of low friction and resistance to abrasion is required. When machining aluminum silicon, CrCx/a-C:H resists the adhesion and galling of aluminum to the cutting tool by reducing friction and TiSiN strongly resists abrasive wear.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating CrC + C
Overall Length 2.4180 61.42MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 24.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.10
Thread Limit GH7 +0.0035
Tap Style Over Sized Plug
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Tap Square 0.1500
Tap Chamfer 3.5P-5.0P
