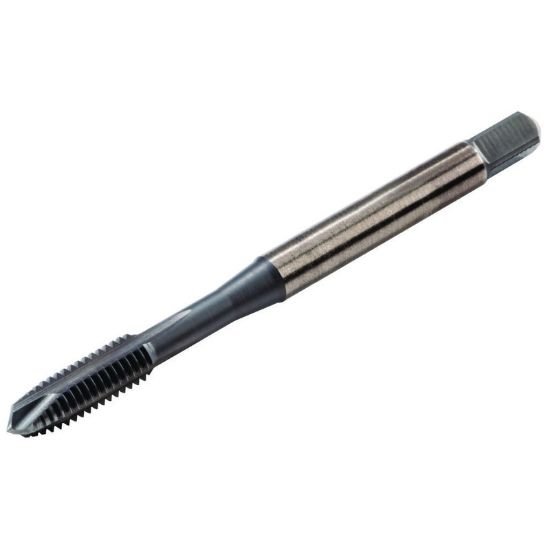

Picture of Widia/Kennametal VTAFT5081 No.8-32.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE CrC + C

Widia/Kennametal VTAFT5081 No.8-32.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE CrC + C

Part Number: WIDVTAFT5081

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1172410
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 6274214 No.8x32.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE CrC + C H4/GH4 NC/UNC Steel A new development in cutting tools has been made for machining aluminum. Hybrid PVD coatings consisting of a super hard TiSiN base layer and a low friction CrCx/a-C:H top layer are used on cutting tools where the combination of low friction and resistance to abrasion is required. When machining aluminum silicon, CrCx/a-C:H resists the adhesion and galling of aluminum to the cutting tool by reducing friction and TiSiN strongly resists abrasive wear.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating CrC + C
Overall Length 2.1250 53.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 32.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.8
Thread Limit H4/GH4
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Square 0.1290
Tap Chamfer 3.5P-5.0P
