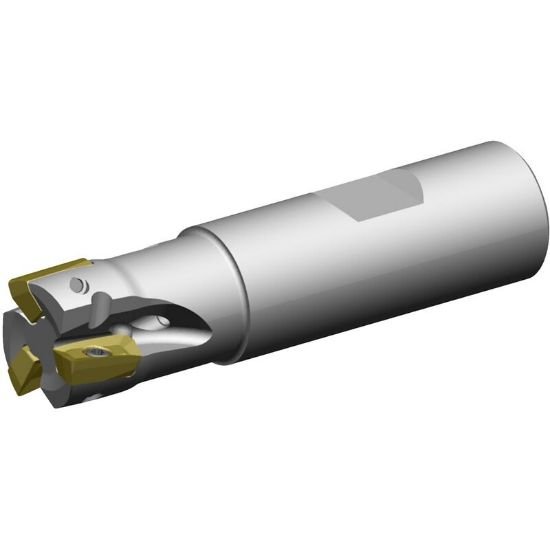

Picture of Widia/Kennametal VSM17D040Z04B40XD17 90.0° Milling Cutter 1.575 Cutter Diameter Weldon 1.574

Widia/Kennametal VSM17D040Z04B40XD17 90.0° Milling Cutter 1.575 Cutter Diameter Weldon 1.574

Part Number: WID5988104 1.575 x 1.575 x 0.638 x 4.331 ISO: VSM17D040Z04B40XD17 ANSI:VSM17D040Z04B40XD17
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1018310
Vendor: Sussex Tool and Supply
$535.00

Description

WIDIA 5988104 90.0°, End Mill End Mill Weldon 1.5748 Positive 1.5750 40.01MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style XD
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 4.3310 110.01MM
Shank/Pilot Dia 1.5748 40.00MM
Flutes/Inserts 4
Tool Dia 1.5750 40.01MM
Length Of Cut 0.6380 16.21MM
Insert Size Ic 17
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Max RPM 29800
Materials & Finish
Tool Material Steel
