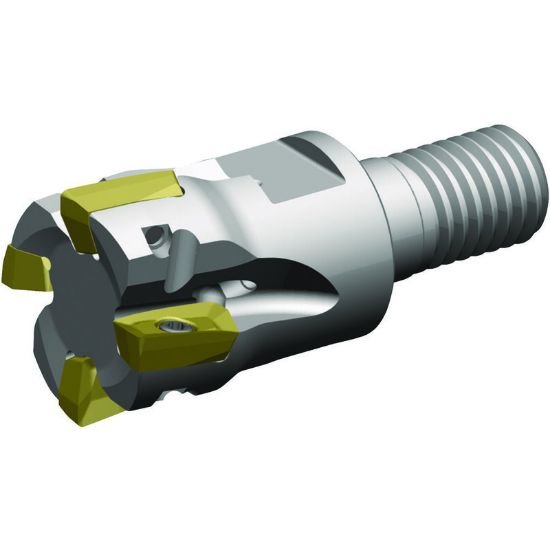

Picture of Widia/Kennametal VSM11D100Z04M12XD11 90.0° Milling Cutter 1.000 Cutter Diameter Screw On M12

Widia/Kennametal VSM11D100Z04M12XD11 90.0° Milling Cutter 1.000 Cutter Diameter Screw On M12

Part Number: WID5416991 ISO: VSM11D100Z04M12XD11 ANSI:VSM11D100Z04M12XD11
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$330.31
SKU: 1018109

Description

WIDIA 5416991 90.0°, End Mill Thread On SCREWM12 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style XD
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 2.1160 53.75MM
Flutes/Inserts 4
Tool Dia 1.0000 25.40MM
Length Of Cut 0.4530 11.51MM
Insert Size Ic 11
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Max RPM 29900
Materials & Finish
Tool Material Steel
