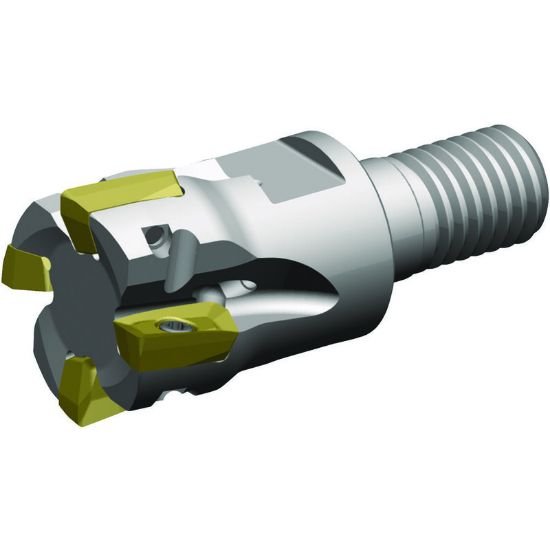

Picture of Widia/Kennametal VSM11D032Z04M16XD11 90.0° Milling Cutter 1.250 Cutter Diameter Screw On M16

Widia/Kennametal VSM11D032Z04M16XD11 90.0° Milling Cutter 1.250 Cutter Diameter Screw On M16

Part Number: WID5417017 ISO: VSM11D032Z04M16XD11 ANSI:VSM11D032Z04M16XD11
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$344.63
SKU: 1018115

Description

WIDIA 5417017 90.0°, End Mill Thread On SCREWM16 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style XD
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 2.5390 64.49MM
Flutes/Inserts 4
Tool Dia 1.2500 31.75MM - 1-1/4
Length Of Cut 0.4510 11.46MM
Insert Size Ic 11
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Max RPM 25800
Materials & Finish
Tool Material Steel
