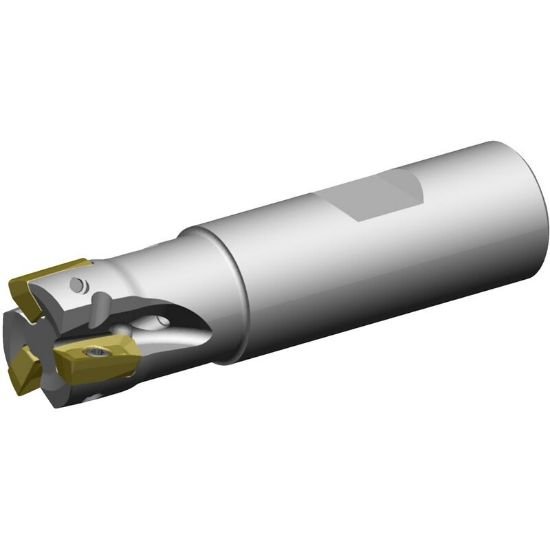

Picture of Widia/Kennametal VSM11D020Z03B16XD11 90.0° Milling Cutter 0.780 Cutter Diameter Cylindrical 0.629

Widia/Kennametal VSM11D020Z03B16XD11 90.0° Milling Cutter 0.780 Cutter Diameter Cylindrical 0.629

Part Number: WID6616468 0.780 x 0.630 x 0.455 x 3.110 ISO: VSM11D020Z03B16XD11 ANSI:VSM11D020Z03B16XD11
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$338.99
SKU: 1018665

Description

WIDIA 6616468 Parallelogram 90.0°, End Mill End Mill Cylindrical 0.6299 Positive 0.7800 19.81MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style XD
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 3.1102 79.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 3
Tool Dia 0.7800 19.81MM
Length Of Cut 0.4549 11.55MM
Insert Size Ic 11
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Max RPM 35100
Materials & Finish
Tool Material Steel
