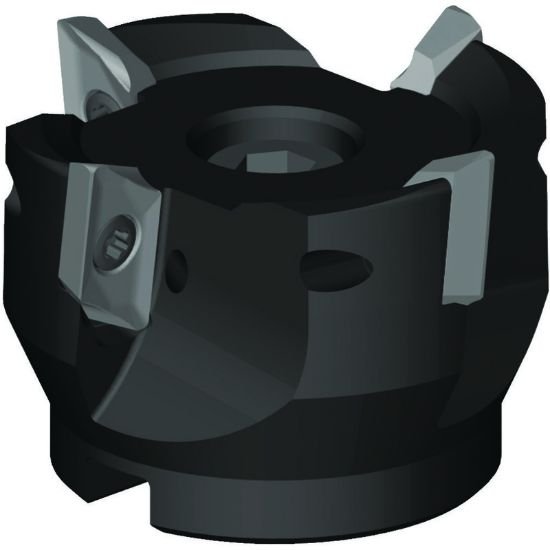

Picture of Widia/Kennametal VHSC250Z04S100XD16 90.0° Milling Cutter 2.500 Cutter Diameter Face Mill 1.000

Widia/Kennametal VHSC250Z04S100XD16 90.0° Milling Cutter 2.500 Cutter Diameter Face Mill 1.000

Part Number: WID6425431 ISO: VHSC250Z04S100XD16 ANSI:VHSC250Z04S100XD16
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1018523
Vendor: Sussex Tool and Supply
$672.52

Description

WIDIA 6425431 90.0°, Face Mill SHELL1.0000 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style XD
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 1.9685 50.00MM
Flutes/Inserts 4
Tool Dia 2.5000 63.50MM - 2-1/2
Length Of Cut 0.6300 16.00MM
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Max RPM 26000
Materials & Finish
Tool Material Steel
