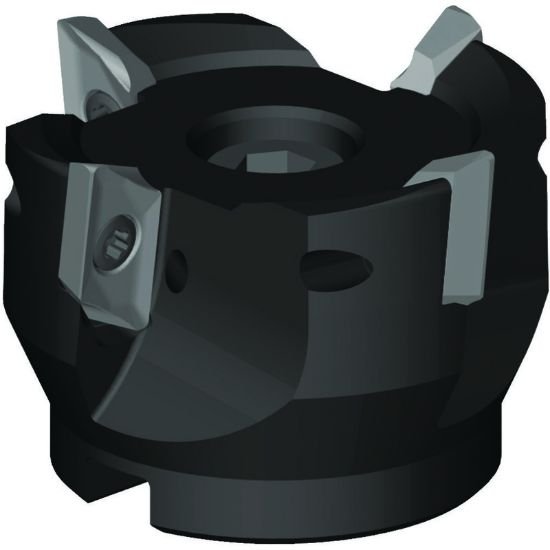

Picture of Widia/Kennametal VHSC200Z03S075XD16 90.0° Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

Widia/Kennametal VHSC200Z03S075XD16 90.0° Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

Part Number: WID6630200 ISO: VHSC200Z03S075XD16 ANSI:VHSC200Z03S075XD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1018669
Vendor: Sussex Tool and Supply
$517.56
WIDIA 6630200 Parallelogram 90.0°, End Mill SHELL0.7500 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 0.7500 19.05MM
Overall Length 1.5748 40.00MM
Coolant Thru Thru Coolant
Flutes/Inserts 3
Tool Dia 2.0000 50.80MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Length Of Cut 0.6300 16.00MM
Insert Application Roughing, Semi Finishing
Insert Style XD
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 16
Hand Right Hand
Max RPM 30000
Cutting Edge Angle 90.0°
