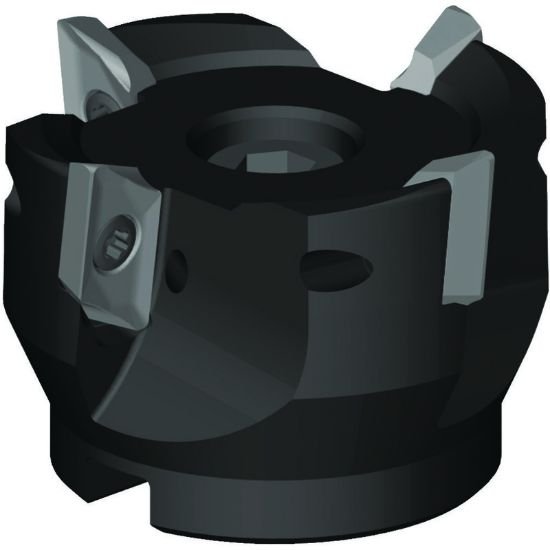

Picture of Widia/Kennametal VHSC080Z05S27XD16 90.0° Milling Cutter 3.149 Cutter Diameter Face Mill 1.063

Widia/Kennametal VHSC080Z05S27XD16 90.0° Milling Cutter 3.149 Cutter Diameter Face Mill 1.063

Part Number: WID6425294 ISO: VHSC080Z05S27XD16 ANSI:VHSC080Z05S27XD16
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1018470
Vendor: Sussex Tool and Supply
$772.31

Description

WIDIA 6425294 90.0°, Face Mill SHELL1.0630 Positive 3.1490 79.98MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style XD
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 1.9685 50.00MM
Flutes/Inserts 5
Tool Dia 3.1490 79.98MM
Length Of Cut 0.6300 16.00MM
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Max RPM 22500
Materials & Finish
Tool Material Steel
