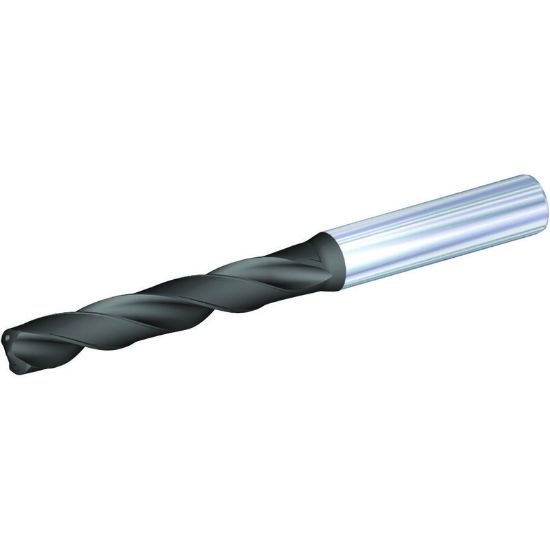

Widia/Kennametal TDS452A06900 SC Drill 6,9mm/.2717/ 5XD

Part Number: WID6328037

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1140357
$0.00
WIDIA 6328037 Carbide Dr SC DRILL 6,9MM/.2717/ 5XD Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless
Coating TiAlN
Mach Side Connection Size 0.3150 8.00MM
Overall Length 3.5800 90.93MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.2717 6.90MM
Type Of Tool Drill
Grade WM15PD
Included Angle 130°
Flute Length 1.6900 42.93MM
Cut Dia Min 0.2717 6.90MM
Dia Deep 6.0x Dia
