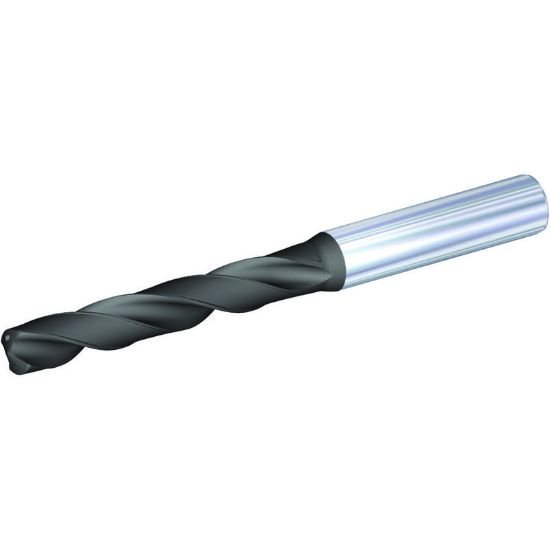

Widia/Kennametal TDS412A18100 SC Drill 18,1mm/.7126/ 5XD

Part Number: WID4156854
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$685.03
SKU: 1138886

Description

WIDIA 4156854 Carbide Dr SC DRILL 18,1MM/.7126/ 5XD Carbide As the name suggests, Aluminum Chromium Nitride is a chromium-based coating that was developed in the early part of the 2000’s. Since then, it has been found to be an excellent choice for coating machining tools based on its superior performance in just about every category that matters. This is due in part to the way the chromium atoms interact with the aluminum in the substance, forming a tough layer that gets even stronger as you add more chromium to the mix. The result is a light, silver-grey substance that contains some remarkable properties.
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 6.0236 153.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 2
Tool Dia 0.7125 18.10MM
Flute Length 3.0320 77.01MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, Ductile Iron
Cut Dia Min 0.7125 18.10MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALCrN
Grade WK15PD
