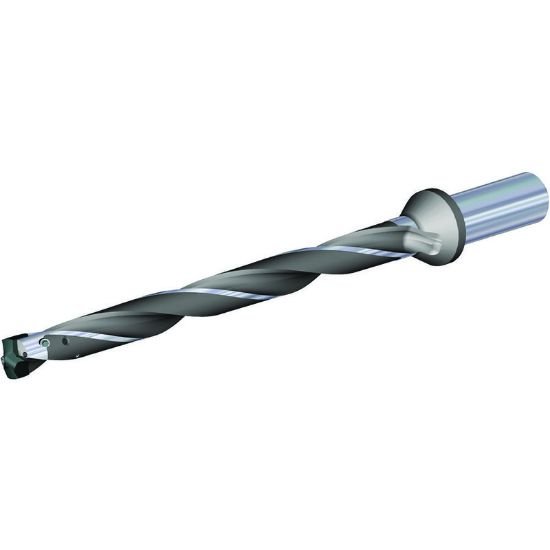

Picture of Widia/Kennametal TDMX200R12SF25M TDMX Body D=20mm 12XD SF Shank

Widia/Kennametal TDMX200R12SF25M TDMX Body D=20mm 12XD SF Shank

Part Number: WID6681041

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1140995
Vendor: Sussex Tool and Supply
$661.79
WIDIA 6681041 Indexable TDMX BODY D=20MM 12XD SF SHANK Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.9843 25.00MM
Overall Length 13.5433 344.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 2
Tool Dia 0.7874 20.00MM
Type Of Tool Drill
Flute Length 9.9210 251.99MM
Cut Dia Min 0.7874 20.00MM
Dia Deep 12.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.8267 21.00MM
