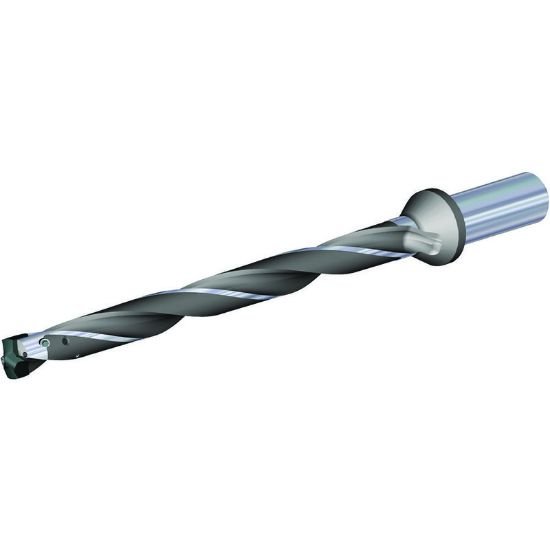

Picture of Widia/Kennametal TDMX160R12SF20M TDMX Body D=16mm 12XD SF Shank

Widia/Kennametal TDMX160R12SF20M TDMX Body D=16mm 12XD SF Shank

Part Number: WID6681017

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1140991
Vendor: Sussex Tool and Supply
$1,159.15
Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 0.7874 20.00MM
Cutter Type Drill
Overall Length 11.1811 284.00MM
Machine Side (Toolpost) WELDON0.7874, BBAR0.7874
Cutting Edge Definition including cutting tools, Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, dies, and others., knives, hand tools
Type of Tool Drill
Machine Side (Toolpost) Connection Type Weldon, Boring Bar
Flutes Or Inserts 2
Shipping State PENNSYLVANIA
Type Indexable Drill Single Insert
Family Group Top Drill Modular X
Tool Material Steel
Mach Side Connection Size 0.7874 20.00MM
Tool Diameter 0.6299 16.00MM
Cut Diameter Min 0.6299 16.00MM
Coolant Thru Thru Coolant
Cut Diameter Max 0.6692 16.99MM
Drill Type Indexable Drill
Made In USA No
Flute Length 8.0320 204.01MM
Diameter Deep 12.0x Dia
