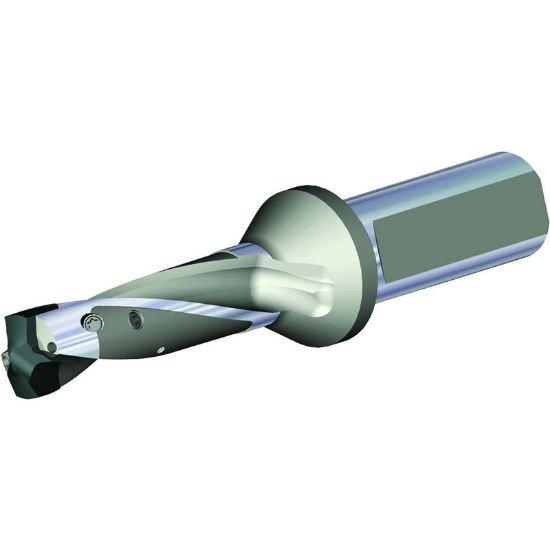

Picture of Widia/Kennametal TDMX1103R3SL125 TDMX Drill Body D1.103 3XD SL

Widia/Kennametal TDMX1103R3SL125 TDMX Drill Body D1.103 3XD SL

Part Number: WID6572198

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1140895
Vendor: Sussex Tool and Supply
$658.60
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Cutter Type Drill
Made In USA No
Cutting Edge Definition Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.
Tool Material Steel
Machine Side (Toolpost) BBAR1.2500, WELDON1.2500
Machine Side (Toolpost) Connection Type Boring Bar, Weldon
Overall Length 7.6772 195.00MM
Shank Or Pilot Diameter 1.2500 31.75MM - 1-1/4
Family Group Top Drill Modular X
Coolant Thru Thru Coolant
Mach Side Connection Size 1.2500 31.75MM - 1-1/4
Tool Diameter 1.1024 28.00MM
Flutes Or Inserts 2
Type of Tool Drill
Flute Length 3.4250 87.00MM
Cut Diameter Min 1.1024 28.00MM
Diameter Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Diameter Max 1.1417 29.00MM
