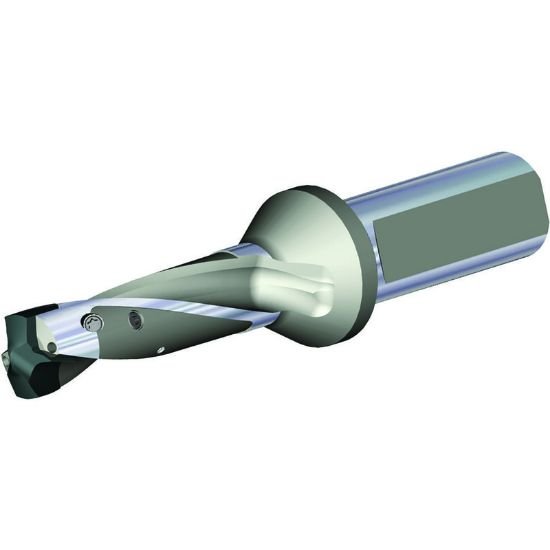

Picture of Widia/Kennametal TDMX0630R3SL075 TDMX Drill Body D.630 3XD SL S

Widia/Kennametal TDMX0630R3SL075 TDMX Drill Body D.630 3XD SL S

Part Number: WID6572186

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1140883
Vendor: Sussex Tool and Supply
$1,154.13
Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Cutter Type Drill
Overall Length 5.1574 131.00MM
Machine Side (Toolpost) WELDON0.7500, BBAR0.7500
Cutting Edge Definition including cutting tools, Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, dies, and others., knives, hand tools
Type of Tool Drill
Machine Side (Toolpost) Connection Type Weldon, Boring Bar
Flutes Or Inserts 2
Shipping State PENNSYLVANIA
Type Indexable Drill Single Insert
Family Group Top Drill Modular X
Tool Material Steel
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 0.6299 16.00MM
Cut Diameter Min 0.6299 16.00MM
Coolant Thru Thru Coolant
Cut Diameter Max 0.6692 16.99MM
Drill Type Indexable Drill
Made In USA No
Flute Length 2.0080 51.00MM
Diameter Deep 3.0x Dia
