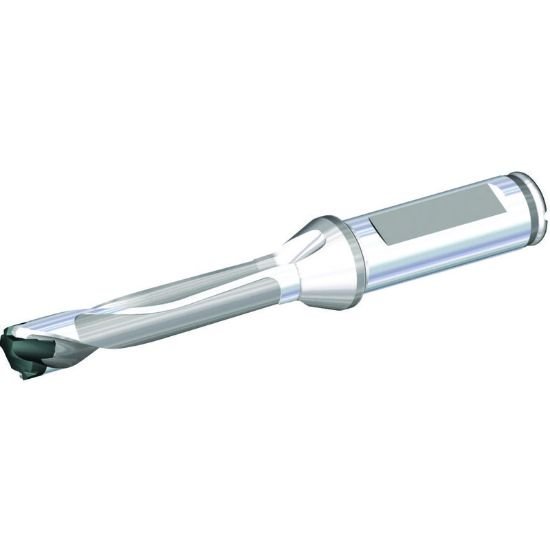

Picture of Widia/Kennametal TDM170R5SCF20M TDM1 SCF Drill Body 5XD D=17.0

Widia/Kennametal TDM170R5SCF20M TDM1 SCF Drill Body 5XD D=17.0

Part Number: WID3850947

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1137470
Vendor: Sussex Tool and Supply
$383.73
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Cutter Type Drill
Made In USA No
Cutting Edge Definition Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.
Tool Material Steel
Machine Side (Toolpost) BBAR0.7874, WELDON0.7874
Machine Side (Toolpost) Connection Type Boring Bar, Weldon
Overall Length 6.6339 168.50MM
Shank Or Pilot Diameter 0.7874 20.00MM
Family Group Top Drill M1
Coolant Thru Thru Coolant
Mach Side Connection Size 0.7874 20.00MM
Tool Diameter 0.6693 17.00MM
Flutes Or Inserts 2
Type of Tool Drill
Flute Length 3.5430 89.99MM
Cut Diameter Min 0.6692 17.00MM
Diameter Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Diameter Max 0.7083 17.99MM
