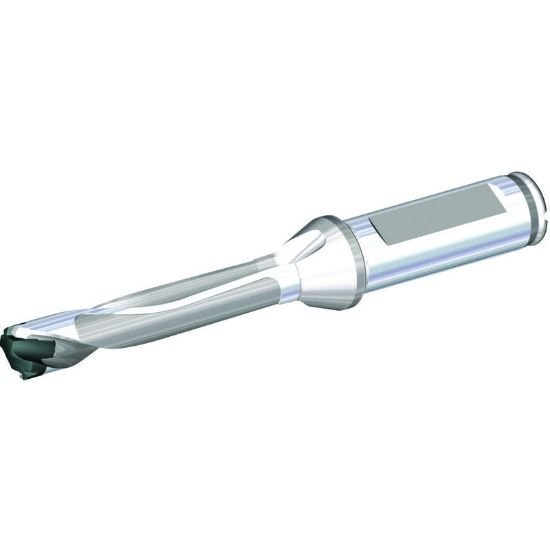

Picture of Widia/Kennametal TDM145R5SCF16M TDM1 SCF Drill Body 5XD D=14.5

Widia/Kennametal TDM145R5SCF16M TDM1 SCF Drill Body 5XD D=14.5

Part Number: WID3850941

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1137464
Vendor: Sussex Tool and Supply
$352.31
WIDIA 3850941 Indexable Drill TDM1 SCF DRILL BODY 5XD D=14.5 Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.6299 16.00MM
Overall Length 5.8070 147.50MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.5709 14.50MM
Type Of Tool Drill
Flute Length 2.9530 75.01MM
Cut Dia Min 0.5709 14.50MM
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.5902 15.00MM
